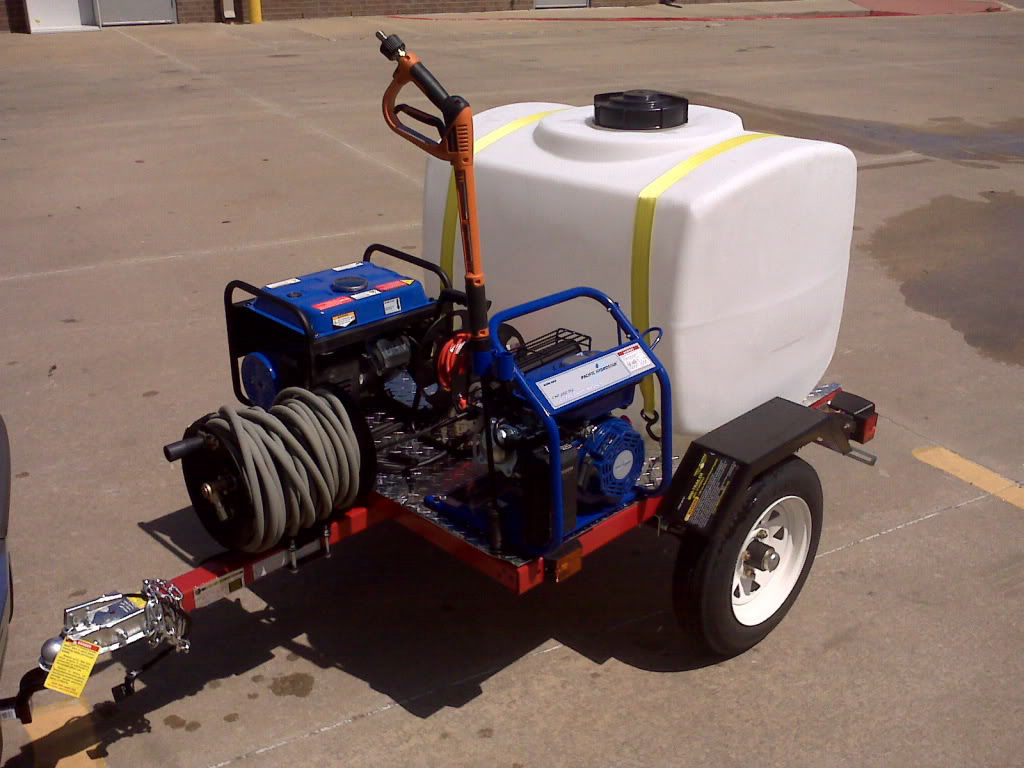

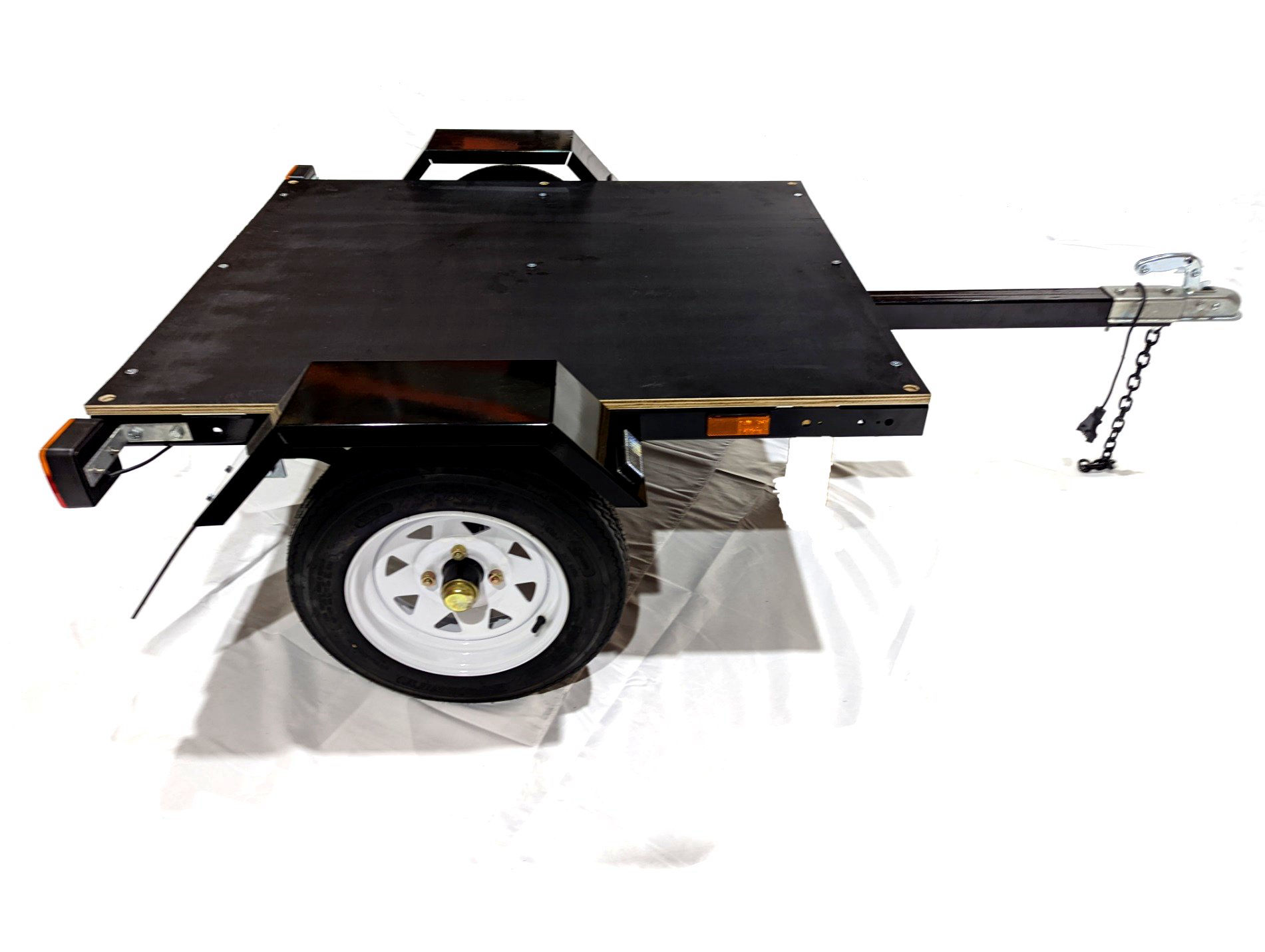

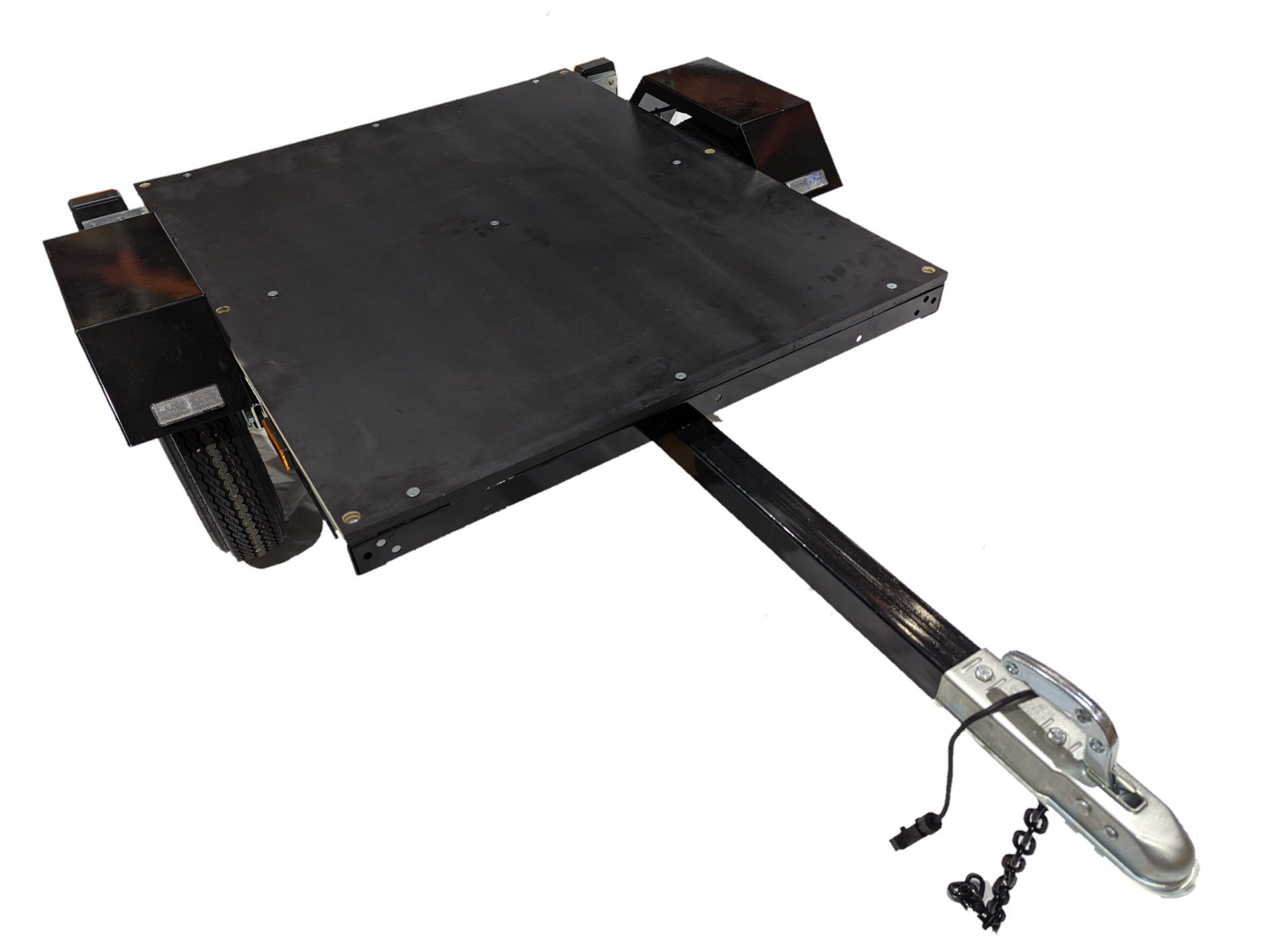

The Smallest Flat Top Trailer with a Carrying Capacity of Over 400kg. The Flat Top Trailer with Formply Floor is Lightweight and Durable and Can Be Towed Behind any Small Vehicle. Carry Equipment and Goods Easily with a Small Flat Trailer.
Trailer Weight 85kg.
Trailer Chassis — 1220mm x 1020mm Capacity 505kg ATM, 400+kg Payload (1500 lbs Frame Rating)
Bed Size 1220mm x 1020mm
Overall Size 1920mm x 1400mm
Tare Weight 68kg + Accessories
Compliance ADR / ECE
Finish High Gloss Powder Coat Black
Springs HT Slipper Leaf (660kg)
Wheels 12” White Spoke Steel (5mm)
Tyres 20” 60PSI,
4PLY High Speed (711kg)
Hubs/Axle 4 Stud,
Easy Lube Cast Iron (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 475mm
Coupler 50mm (750kg)
Coupler Height 410mm
Frame “C” Section 1.5”x2” (2.5mm)
Drawbar 700mm — 2.5”x2.5” (2.5mm)
Towball Weight 10% of GTM
Fender Height 70mm
Lights ADR Combination Type
Wiring 7-Pin Flat Loom

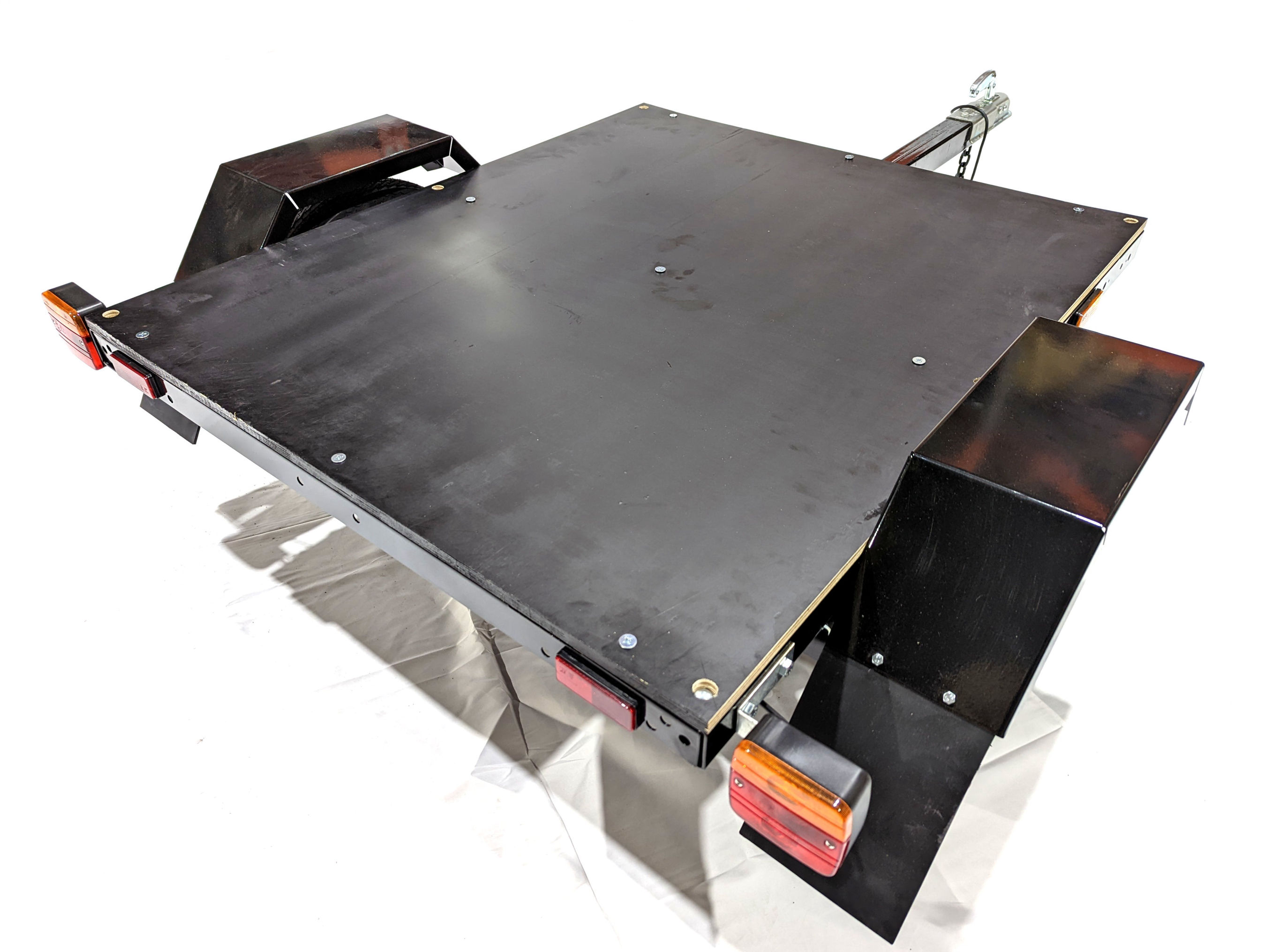

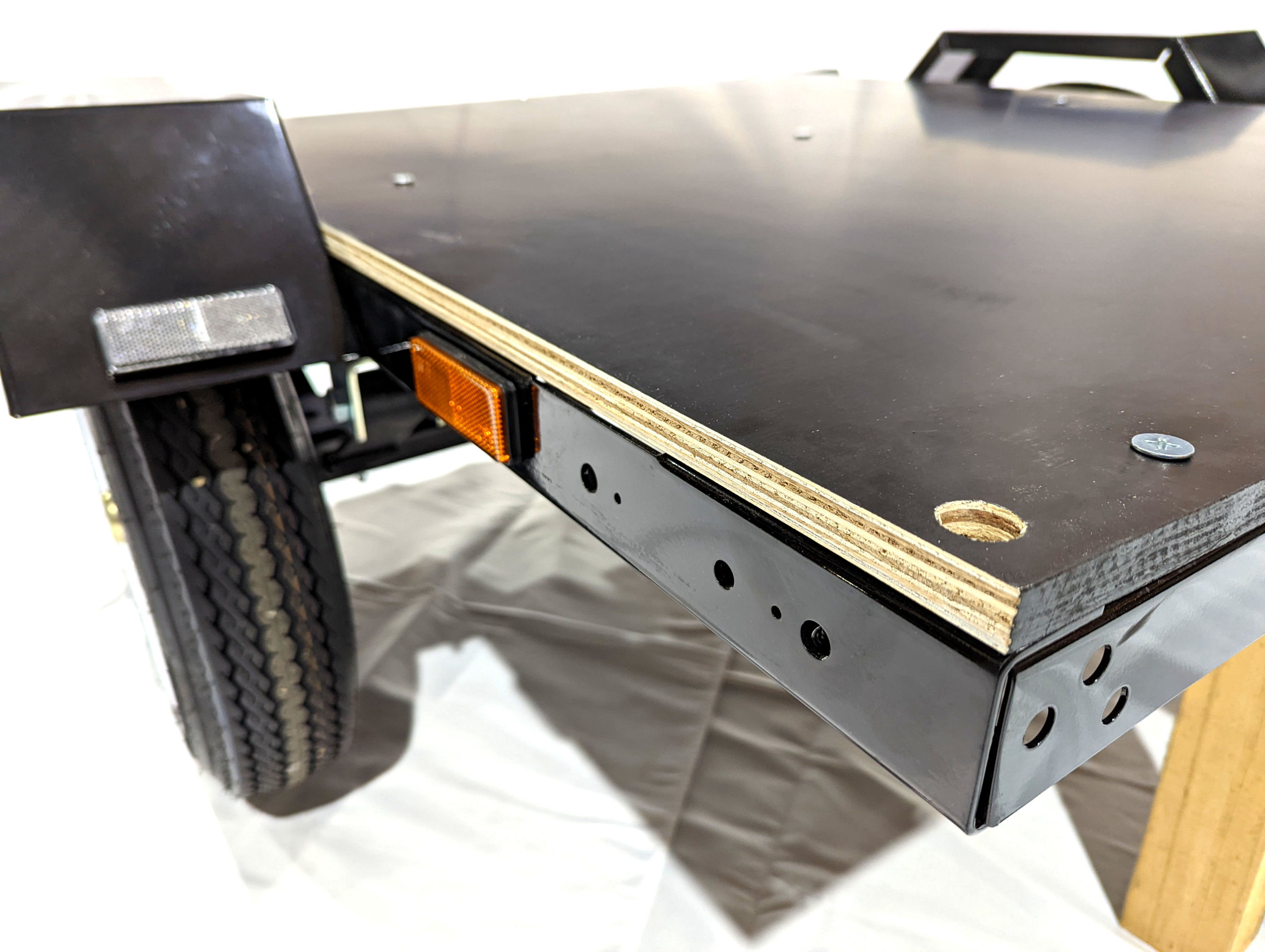

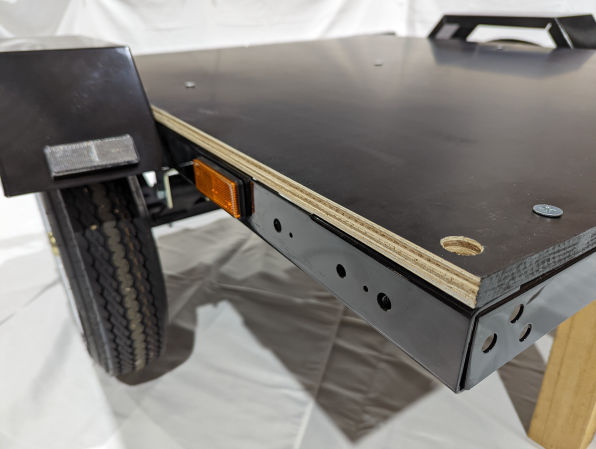

17mm Formply Floor.
Light & Tough.

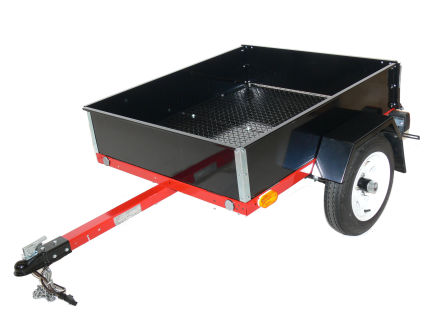

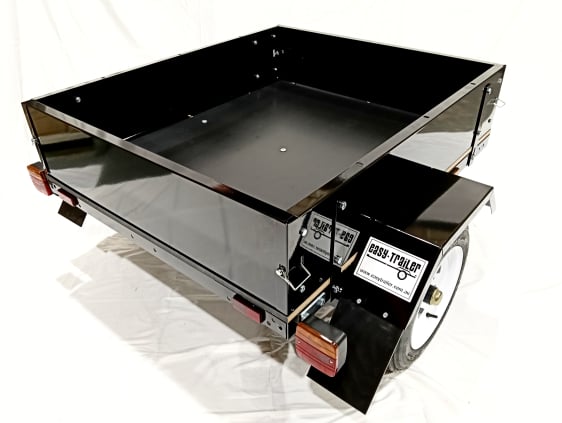

You Can Add Trailer Box Sides 240mm Sides Removable Front & Rear Panels Bolt On Sides Kit
Wheel Chocks are Optional.
Carry Small Motorbikes like Vespa's, Pit Bikes, and Fat Wheel Electric Bikes

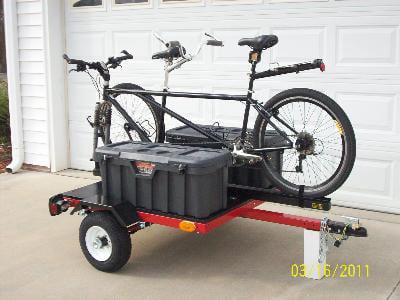

You Can Add Bicycle Racks and Cargo Boxes Easily to a Flat Top Trailer.
50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.
3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.
Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.
Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.
Highspeed R12 Wheel.
OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar
Multifit Folding Levelling Leg.
Folds Up & Locks into Place
Quick Height Adjustment
Fit to Drawbar / Rear of Trailer
500kg Rated Traingle D Rings. 50mm Triangle, Inc Bolts. Available in 10 or 4 Packs
The Ultimate Motorcycle Transport Stand. 750kg Rated. Holds Front Wheel & Stand Your Bike Upright.
130mm Wide x 950mm Long
50mm Tall Sides
Suits all Motorcycles up to 120mm Wide Tyres.
Dual Wheel, 6" Castors.
Folding Design.
Note:
ADDs 8kg to Drawbar Weight
500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame
300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More
Locks the Operation of the Coupler Handle Completely.
Unique Internal Key Lock.
Cannot Remove wihout KEY.
Off Car Trailer Parking Lock.
Integral Tow Ball Locking System when Trailer is Parked.
HD Wheel Clamp Suits from R12 Up. Key Locking.
Hint: Lock both Wheels with 2 Units.
454kg Rated Ratchet Strap Set.
4.2m Length with Hook Ends.
Rope Pulley Lock Tie Set

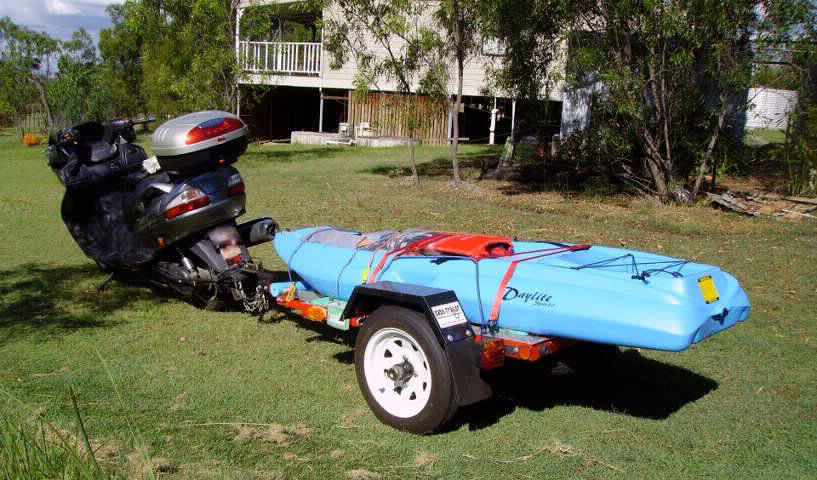

Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.
Use a RED Flag on OVERHANGING items.
Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.
Safety for everyone.
400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface
Ideal to Set a Thread into Plywood Floors to Mount Motorbike Channels, Boxes, and Other items Across the Floor of the Trailer.
10 Pack, includes 40mm Long Bolts & Spring Washers & 4 Pack Available.
Easy Trailer has the ability to change your Trailer to suit hundreds of applications.
Set up one Trailer to carry a multitude of sports and hobbies with our changeable system. Set up as a Flat Top Trailer to Motorbike Trailer to Kayak Trailer and to anything you need to carry with ease.
